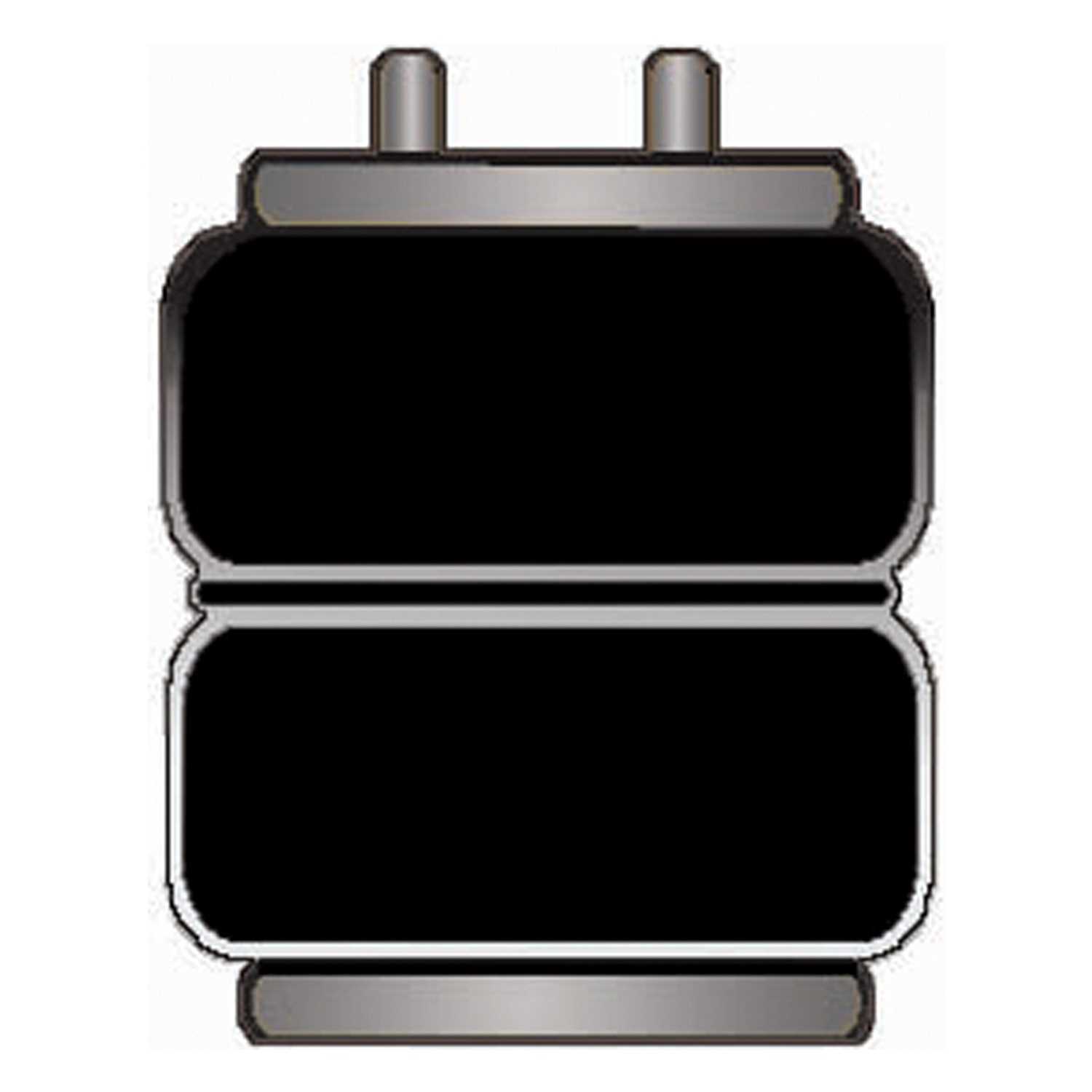

6872 Firestone Ride-Rite Ride-Rite® Air Helper Spring
6872 Firestone Ride-Rite Ride-Rite® Air Helper Spring 6872
Firestone Ride-Rite 6872
Ride-Rite® Air Helper Spring - Rear - 224C Style - Double Convoluted - 7 in. Height - 7.25 in. Dia. - 2500 lbs. Max Load At 100 psi - 3/8 NPT Air Inlet
Firestone Ride-Rite
Featured Item
Product Features
- Keep The Vehicle Level
- Level Off-Center Loads
- Reduce Suspension Fatigue
- Air Adjustments Improves The Ride
- Reduce Bottoming Out
- Increase Vehicle Stability
Product Specifications
- Ride-Rite® Air Helper Spring
- Rear
- 224C Style
- Double Convoluted
- 7 in. Height
- 7.25 in. Dia.
- 2500 lbs. Max Load At 100 psi
- 3/8 NPT Air Inlet
- Max Load: 5000 lbs.
- WARNING CA Proposition 65: No
Rear
Description
Firestone's most popular and comprehensive air helper spring line, Ride-Rite kits can be installed on most light trucks, motor-homes, RVs, SUVs and vans. Each application is specifically designed to maximize the vehicle's safe load-carrying capacity, stability, ride quality and brake effectiveness. Firestone Ride-Rite air helper springs provide load support through the use of air pressure that can be adjusted for changing loads. They enhance the ride by reducing inter-leaf friction. The system features individual inflation valves that allow for separate side-to-side or front-to-rear adjustment, which helps keep the vehicle level when carrying off-center loads and maintains ride quality under differing load conditions. Most Ride-Rite kits are no-drill systems, designed to use the vehicle's factory holes and mount between its frame and suspension. All the components are included in the kit for an easy installation that typically takes 1 to 2 hours. Kits come with a two-year limited warranty.
Installation Instructions
Warranty Details
Ride-Rite® Air Helper Spring
Application
