48-36109-YC AFE Filters Street Series Twisted Steel Header
48-36109-YC AFE Filters Street Series Twisted Steel Header 48-36109-YC
AFE Filters 48-36109-YC
Street Series Twisted Steel Header - Fits 2001-2016 Nissan® Patrol 4.8L V8 - 2 Door
AFE Filters
Featured Item
Product Features
- 304 Stainless Steel; 1-3/4 in.; 2-1/8 in.; Into 2-1/2 Collector

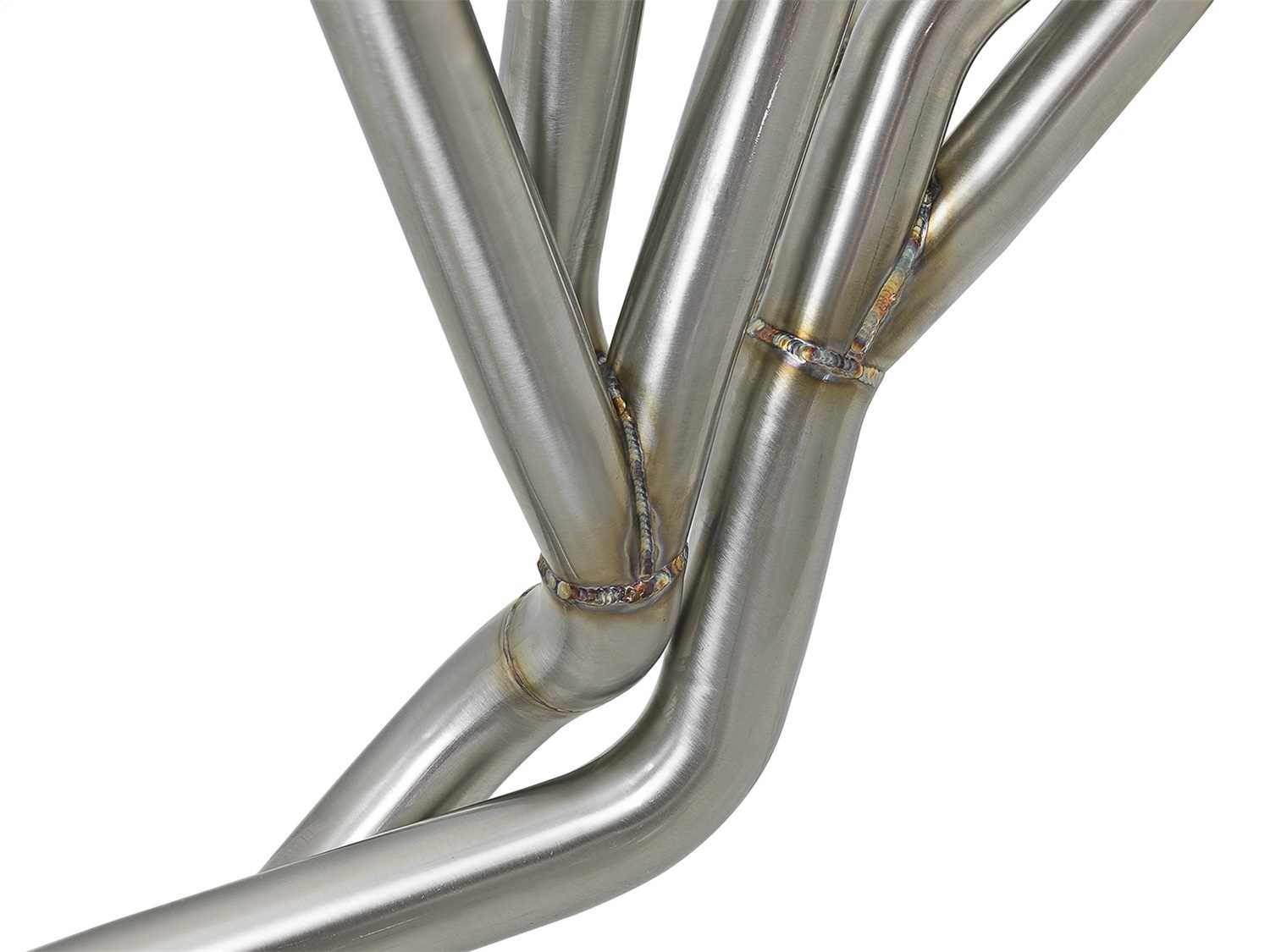

- 6-2-1 Tri-Y Designed Headers

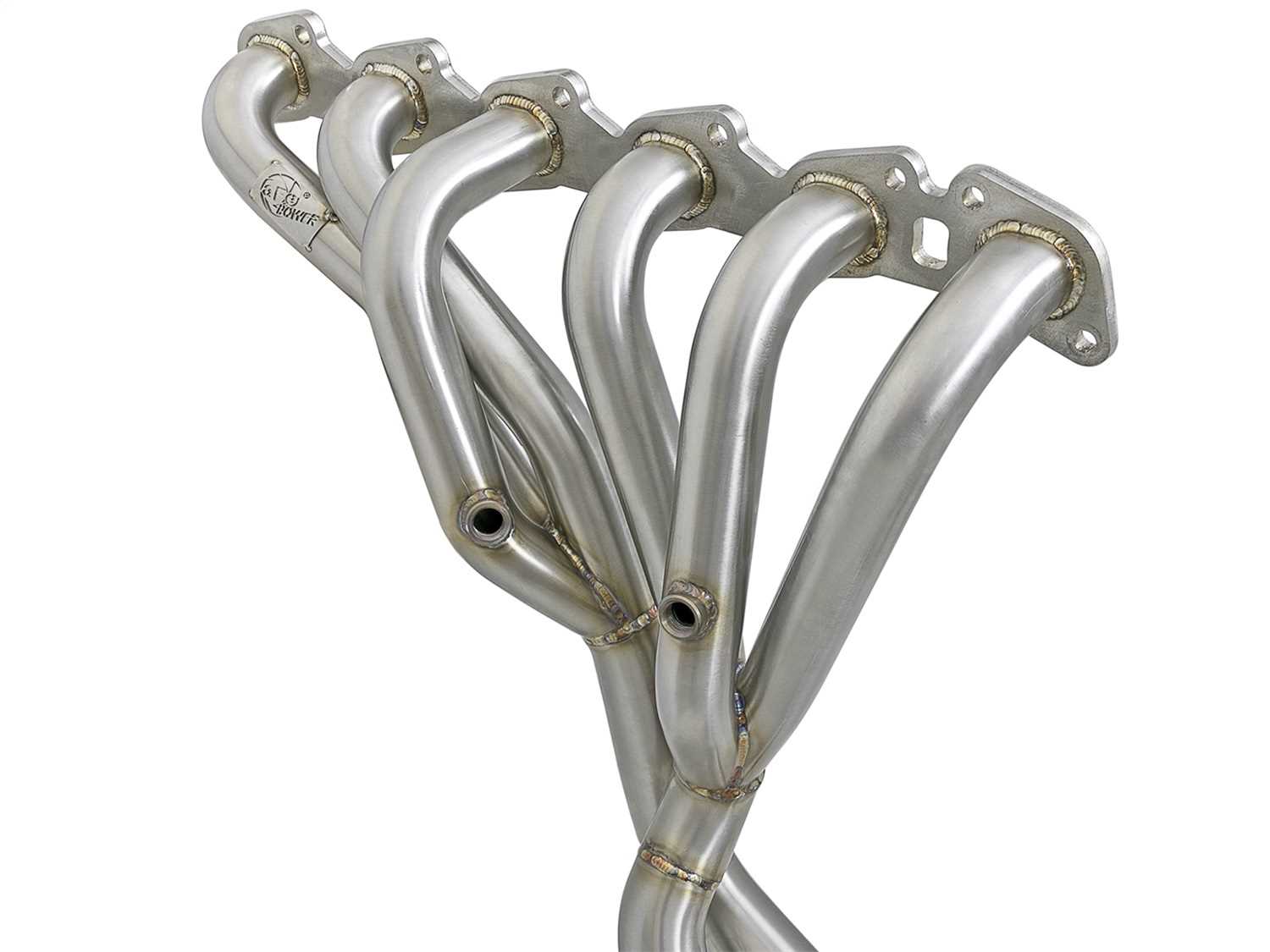

- High Quality 3/8 in. Thick Laser Cut Head Flanges

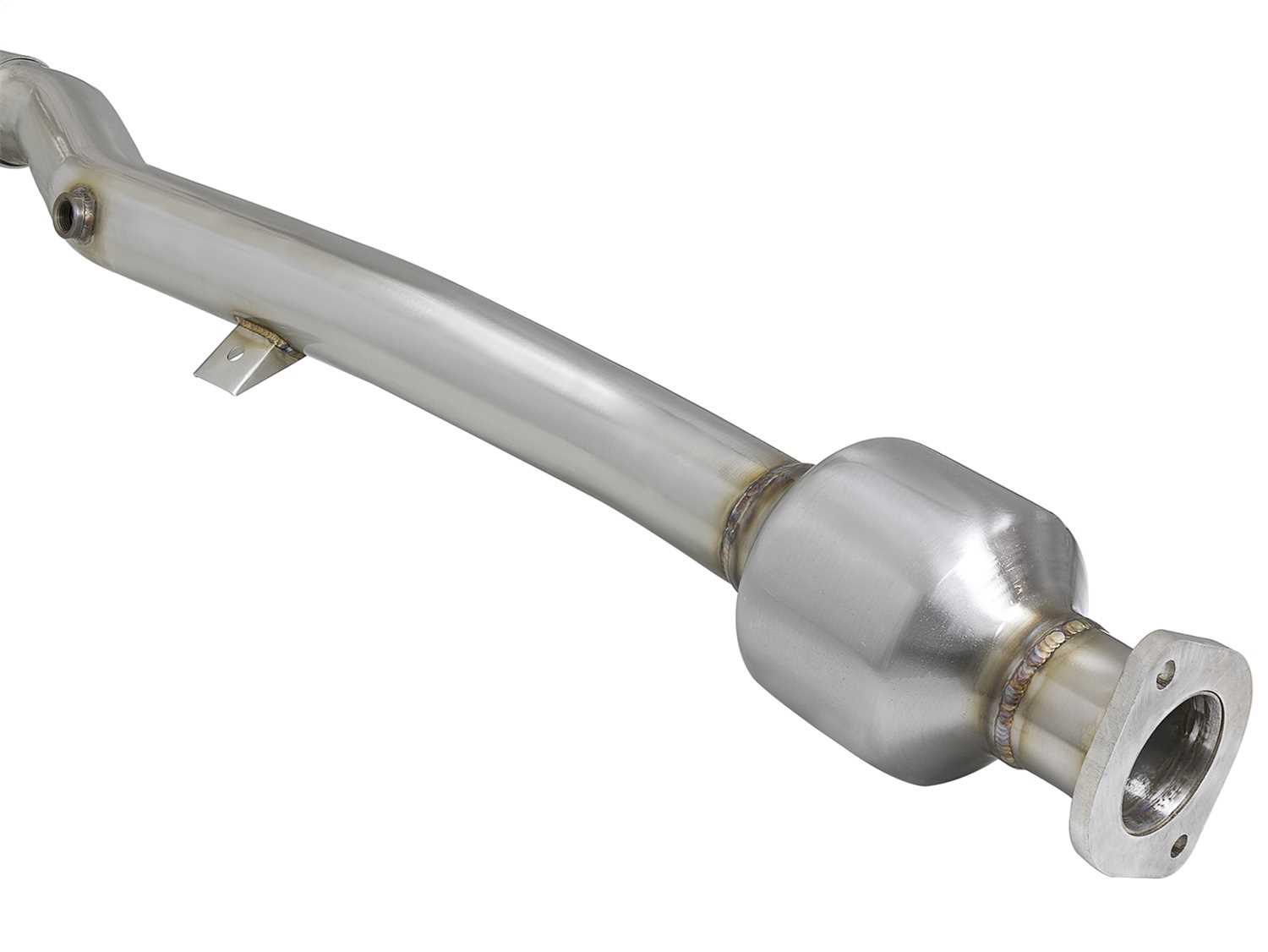

- Includes Hi-Flow; Ceramic; 400 Cell Catalytic Converter
- Incorporates Second Bung Wide-Band O2 Gauge/Aux. Instrumentation
- Fits 2-Door Model Only
Product Specifications
- Street Series Twisted Steel Header
- Fits 2001-2016 Nissan® Patrol 4.8L V8
- 2 Door
- Application: Automotive
- Coated Finish: Stainless Steel
- Collector Tube Size: N/A
- Engine Make/Size: Nissan 4.8L
- Flange Length: 0.375 in.
- Material: Steel
- Muffler Type: None
- Port Shape: Round
- Tube Diameter: 2.5
- Tube Direction: Down Swept
Description

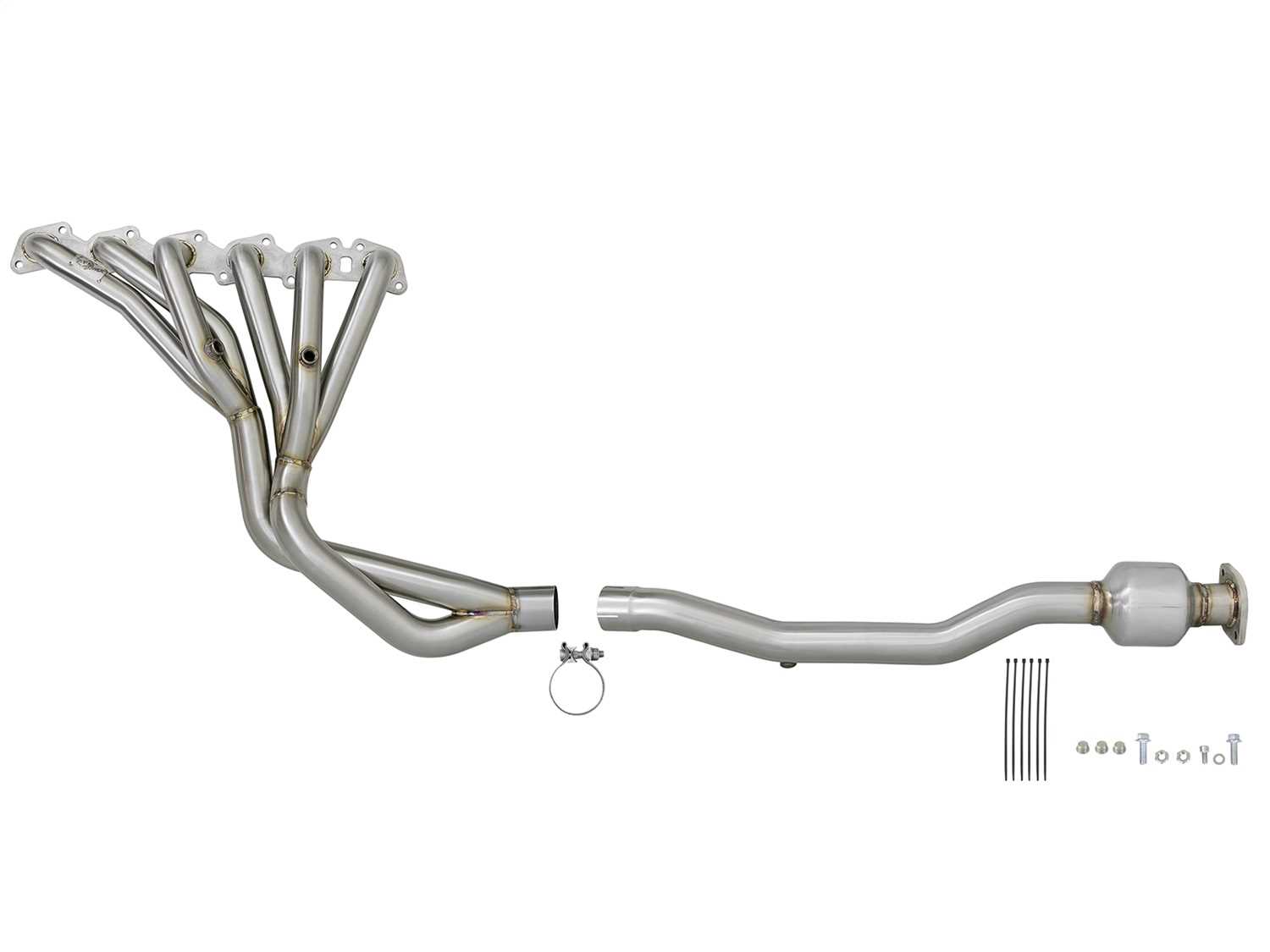

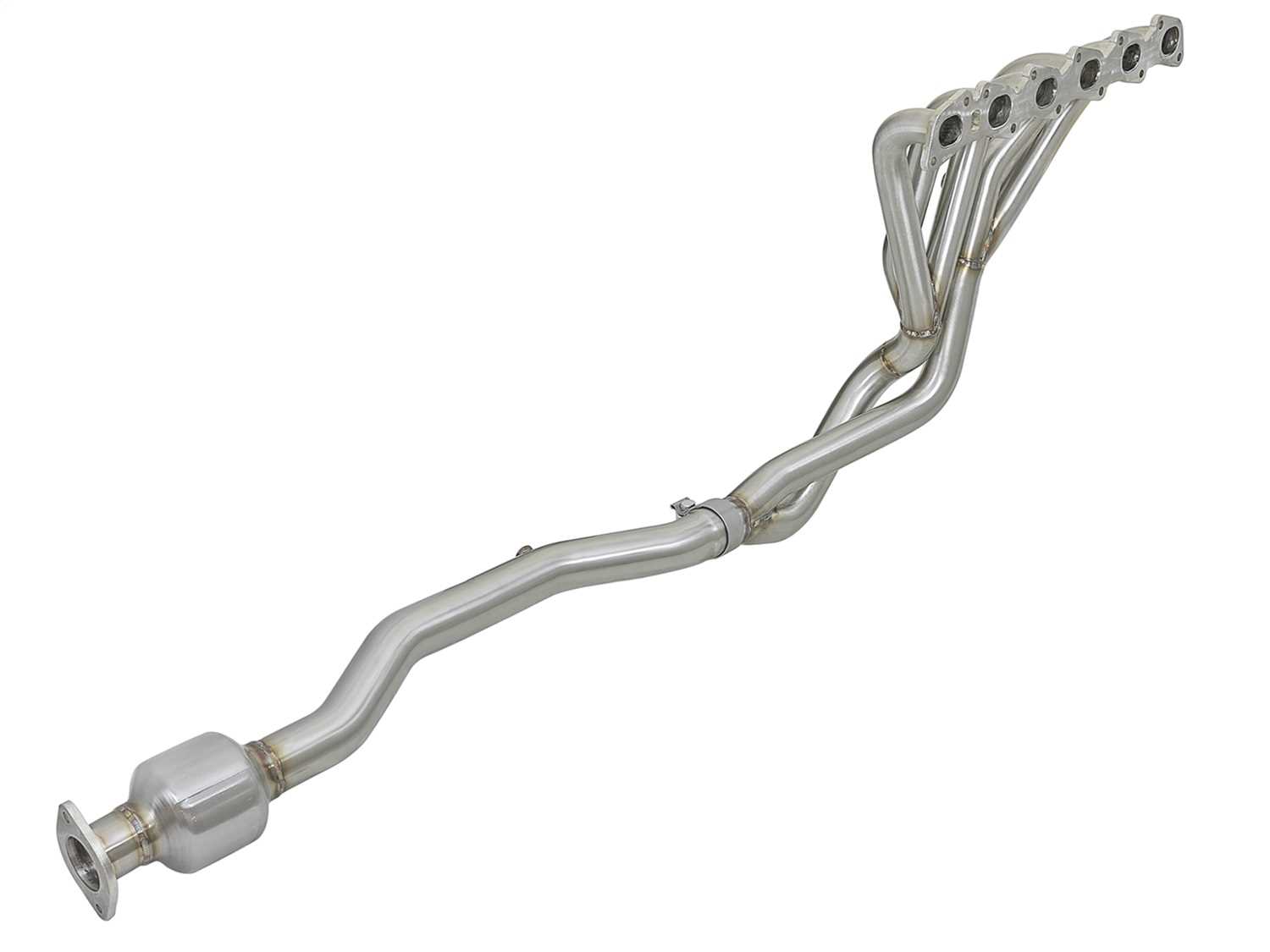

aFe POWER's Twisted Steel long tube header and connection pipe deliver +24 HP and +27 lbs. x ft. torque over the factory. This system is constructed with 1-3/4" primary to 2-1/8" secondary, and 2-1/2" mandrel bent, 304 stainless steel, brush finished tubing for greater exhaust flow and longevity. 100% hand TIG-welded by certified craftsmen for proven durability. The long tube header incorporates a 6-2-1 Tri-Y designed. These features create a smooth transition to eliminate dead zones and improve flow. High quality band clamps and hardware to provide a quick, hassle-free installation. Performance Gains: +24 HP / +27 lbs. x ft. Torque max gains (Tested on a 2005 Nissan Patrol (Y61) I6-4.8L 4-Door Automatic). Tri-Y Design: Paired opposite firing cylinders with equal, specifically tuned primary lengths maximizes scavenging and increases torque throughout the power band. Stainless Steel Tubing & Laser Cut Header Flanges: High grade 304 stainless tubing with a uniform brushed finish provides a beautiful look and high resistance to corrosion. Laser cut 304 stainless steel header flanges provides superior sealing at the head surface. High-Flow Catalytic Converter: This system utilizes a high flow, 400 cell catalytic converter for maximum flow. TIG-Welded: 100% TIG-Welded by certified craftsmen for race proven strength and durability. TIG-Welding provides the strongest welds reducing stress cracks. Factory Mounting Locations: 2-1/2" flanged connection pipe mounts directly to OE mounting location. Leak-Free Seal: High quality band clamps are used for a complete 360-degree sealing surface. Emissions Disclaimer: This product does not require a CARB EO# (Vehicle does not exist in U.S.). aFe Twisted Steel Headers are engineered and manufactured in our Corona, California manufacturing facility.
Installation Instructions
Warranty Details
Street Series Twisted Steel Header
Application
